Electronic Multiway Valves

Electronic 6-way Valve

Electronic 6-way Valve

The Electronic 6-way Valve has been designed by Schrader Pacific Advanced Valves for new Thermal Management requirements and new heat pump architectures. Valve is suitable for both R-1234yf and R-134a refrigerant application.

Electronic 6-way Valve is including shut-off function along with expansion and full open position. Schrader Pacific Advanced Valves flexible design can be customized to meet the different thermal management architectures.

The Electronic 6-way Valve is providing key features such as bi-directionality and high opening area.

Offering up to 6 ports, the Electronic 6-way Valve can ultimately act as 4 Large Flow Electronic Expansion Valves. Downsized to 4 ports, the Electronic 6-way Valve can replace 4 solenoid valves.

Benefitting from direct drive actuation, Schrader Pacific Advanced Valves can propose the highest level of performance with very high resolution and low hysteresis to achieve a good flow accuracy meanwhile having a flexible design that can be customized to meet the different flow characteristics.

All Electronic 6-way Valve properties can also be found within Schrader Pacific Advanced Valves R-1234yf Expansion Valve solution.

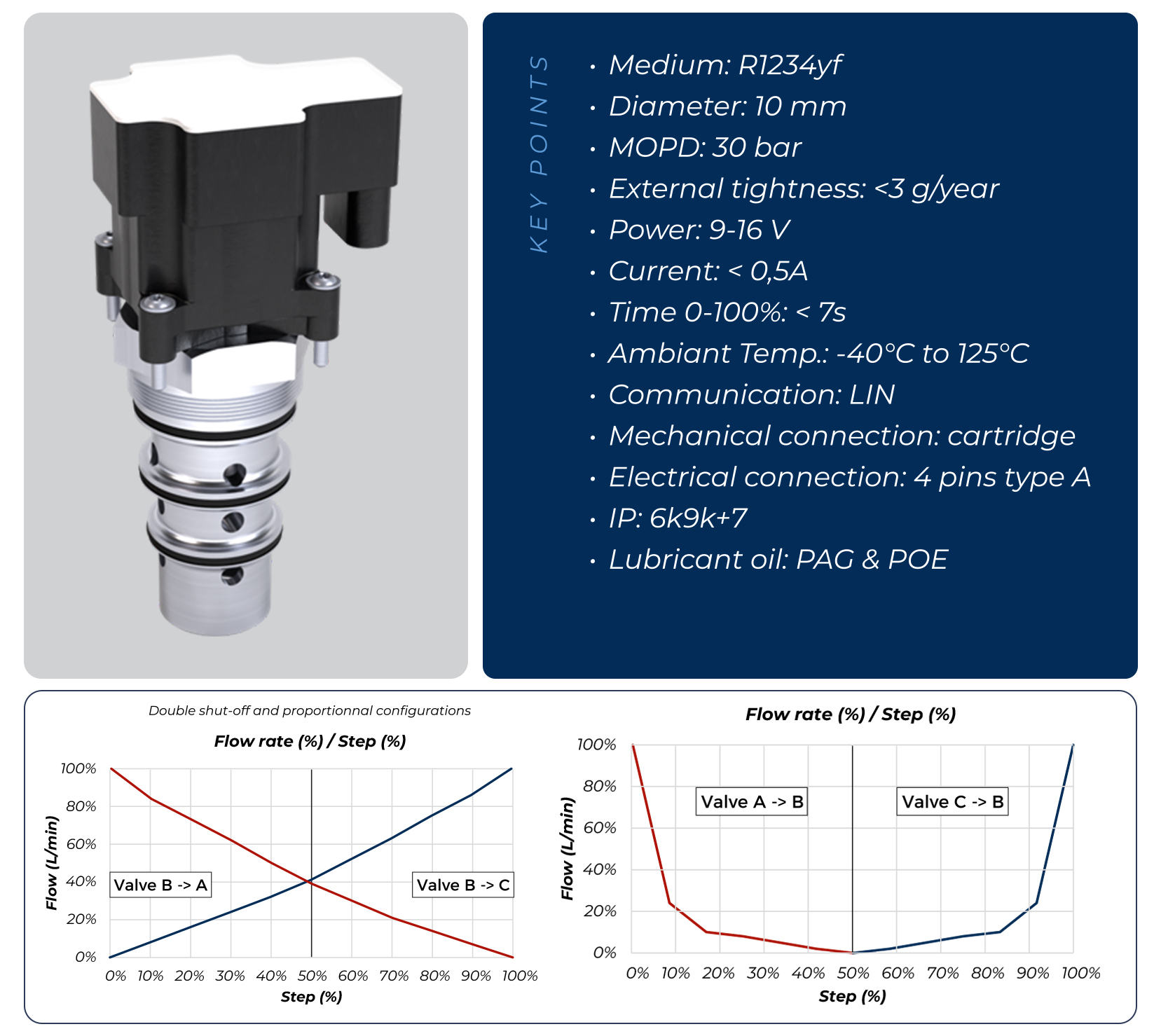

Electronic 3-way Valve

Electronic 3-way Valve

The Electronic 3-way Valve has been designed by Schrader Pacific Advanced Valves for new Thermal Management requirements and new heat pump architectures. Valve is suitable for both R-1234yf and R-134a refrigerant application.

Electronic 3-way Valve is including shut-off function along with expansion and full open position.

Schrader Pacific Advanced Valves proposed two main designs:

  • Proportional 3-way valve 1 in / 2 out allows to get the 3 following modes :

Full flow with selection of out 1 or 2 / Flow split at 50% between each output / Proportional flow split between each output.

  • Expansion 3-way valve 2 in / 1 out allows to get the 3 following modes :

Full flow with selection of in 1 or 2 / All way closed / Expansion on 1 input the other being closed.

The Electronic 3-way Valve is providing key features such as bi-directionality and high opening area.

Benefitting from direct drive actuation, Schrader Pacific Advanced Valves can propose the highest level of performance with very high resolution and low hysteresis to achieve a good flow accuracy meanwhile having a flexible design that can be customized to meet the different flow characteristics.

The direct drive technology also ensures the lowest external leakage in all conditions of use required in Thermal Management circuits.

The Electronic 3-way Valve can be further customised with LIN or PWM control type but also with flexible in-bloc valve body or with a cartridge form factor that can be integrated into Thermal Management Modules.

All Electronic 3-way Valve properties can also be found within Schrader Pacific Advanced Valves R-1234yf Expansion Valve solution.
